Now PrintingCollaborative Robot Air Hand & Chuck (For COBOTTA PRO Series)
Plug & Play Compatible with the DENSO Robot COBOTTA PRO Series
■ Direct mounting and easy control with DENSO Robot COBOTTA PRO Series
■ Built-in valve eliminates the need for external air piping
■ Equipped with open＆close confirmation sensors

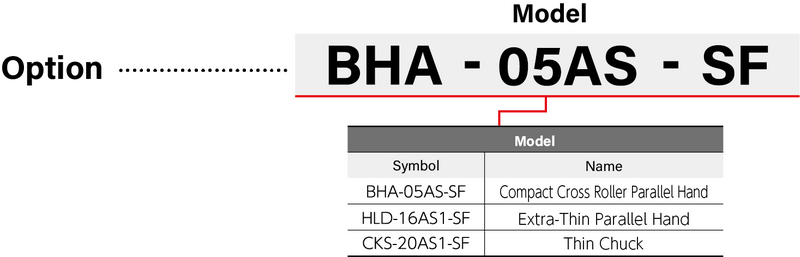

How the Model Name Work
Specification
Slide →
| Model | BHA-05AS-SF | HLD-16AS1-SF | CKS-20AS1-SF |
|---|---|---|---|
| Working Pressure | Pneumatic: 0.2 to 0.7MPa | ||
| Lubrication | Not Required or Turbine Oil Class 1 (ISOVG32) | ||
| Ambient Temperature (℃) | 5 to 50 | ||
| Total Jaw Stroke(mm) | 15 | 20 | 20 |
| Optimal Gripping Force（N） | 80 to 150 | 100 to 500 | 150 to 300 |
| Repeatability(mm) | ±0.01 | ||
| Weight (kg) | 1.10 | 1.28 | 1.27 |
Download
| Model | Option | DXF file | STEP、IGES file |
|---|---|---|---|
| BHA-05AS-SF | Z:Special specification
|  | |
| HLD-16AS1-SF | Z:Special specification
| | |
| CKS-20AS1-SF | Z:Special specification
| | |
