Now PrintingCollaborative Robot Air Chuck (For COBOTTA PRO Series)
CKS
Plug & Play Compatible with the DENSO Robot COBOTTA PRO Series
■ Direct mounting and easy control with DENSO Robot COBOTTA PRO Series
■ Built-in valve eliminates the need for external air piping
■ Equipped with open＆close confirmation sensors

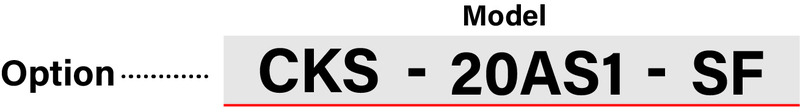

How the Model Name Work
Specification
Slide →
| Model | CKS-20AS1-SF |
|---|---|
| Working Pressure | Pneumatic: 0.2 to 0.7MPa |
| Lubrication | Not Required or Turbine Oil Class 1 (ISOVG32) |
| Ambient Temperature (℃) | 5 to 50 |
| Total Jaw Stroke(mm) | 20 |
| Optimal Gripping Force（N） | 150 to 300 |
| Repeatability(mm) | ±0.01 |
| Weight (kg) | 1.27 |
Download
| Model | Option | DXF file | STEP、IGES file |
|---|---|---|---|
| CKS-20AS1-SF | Z:Special specification
|  | |
